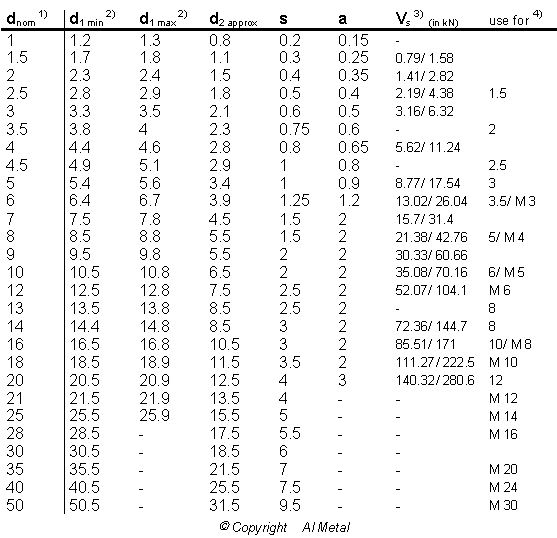

Technical data of DIN 1481




values in mm


DIN 1481
DIN 1481 (ISO 8752 - NEN 2458) Spring type straight pin, slotted, heavy type



1) Nominal diameter (recommended hole diameter with tolerance field H12). 2) Unstrained diameter. 3) Minimum shear load single shear (left) / double shear (right) in kN. 4) Pins can be combined with other pin diameter or bolt/nut according to DIN 7349.
